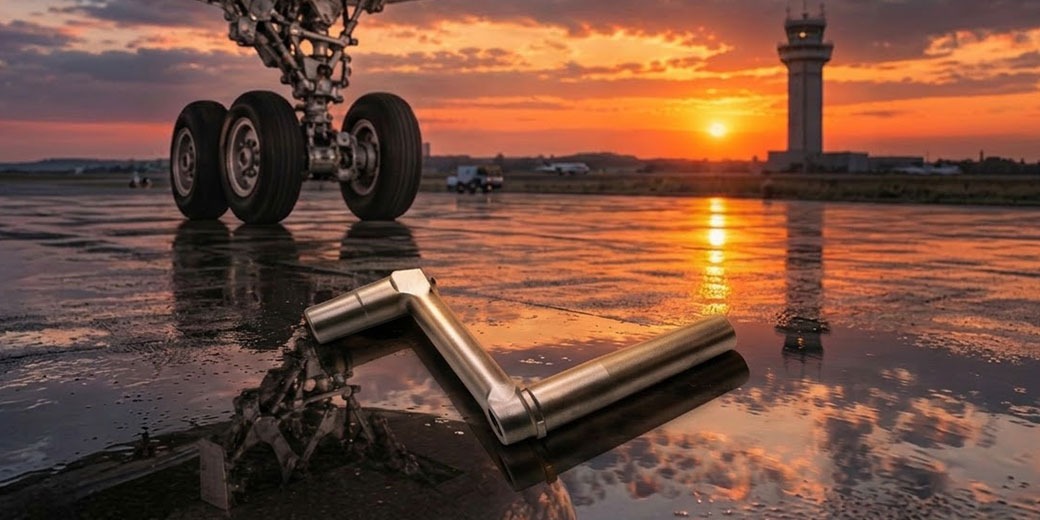

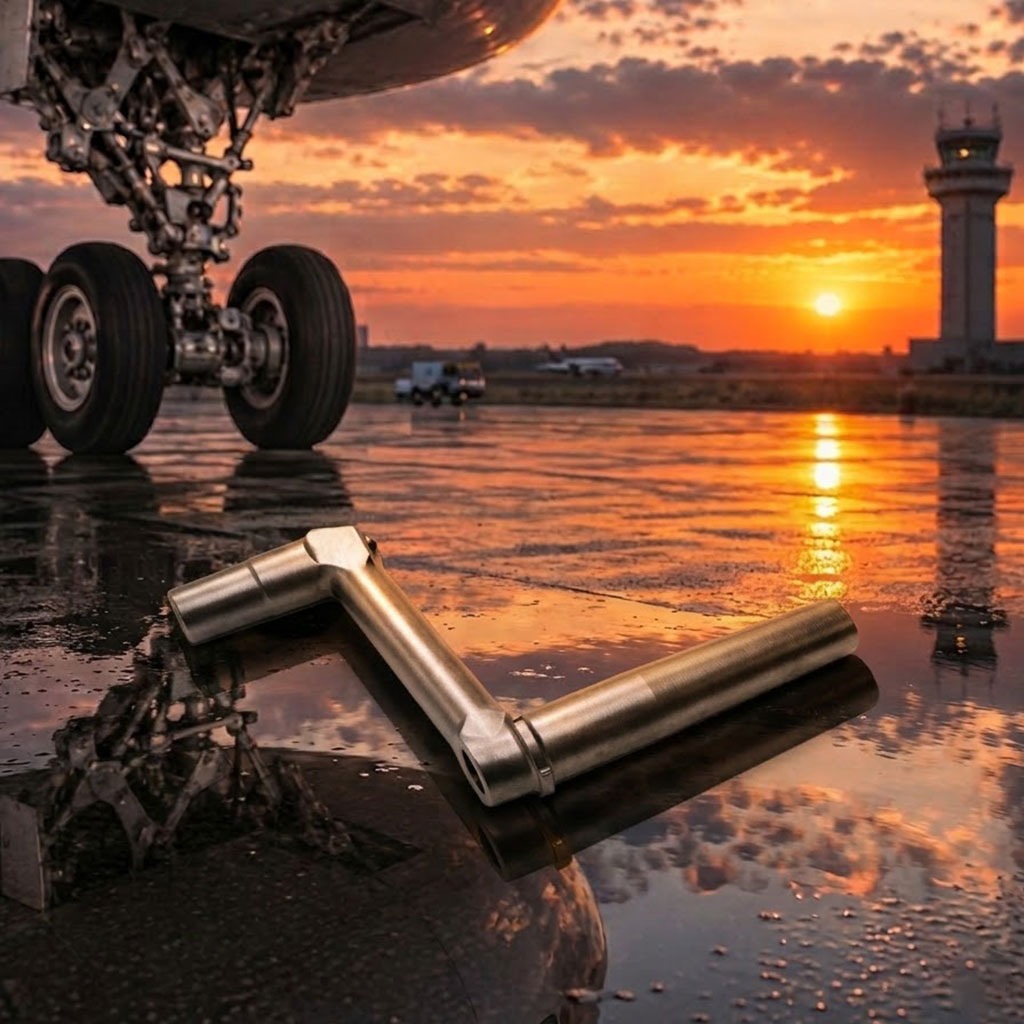

Aircraft Landing Gear Forging Supplier for USA from India: 300M & Titanium Components
Aircraft landing gear is one of the most structurally demanding systems on an aircraft. Unlike many aerospace components that operate under relatively predictable loading, landing gear must repeatedly absorb high-energy impact during touchdown, support the aircraft during taxiing and ground manoeuvres, withstand braking and lateral loads, and continue performing across thousands of flight cycles.
This combination of impact loading, fatigue, bending, torsion and environmental exposure makes material selection and manufacturing route critical.
For this reason, major landing gear components are commonly produced from high-strength forged materials such as 300M steel and titanium alloys, rather than being machined entirely from conventional bar or plate.
For US aerospace OEMs and Tier-1 manufacturers evaluating an aircraft landing gear forging supplier from India, the sourcing decision therefore extends well beyond forging capacity. The supplier must demonstrate control over raw material, forging deformation, grain flow, heat treatment, non-destructive testing, dimensional inspection, machining and aerospace documentation.
A landing gear forging is not simply a piece of metal shaped under a press. It is a structural component whose metallurgical history becomes part of its engineering performance.
Why Forging Is Used for Aircraft Landing Gear
Landing gear experiences severe loads during a relatively short portion of every flight.
During touchdown, the gear must absorb the vertical kinetic energy of the aircraft. At the same time, it can experience longitudinal loads from braking, lateral loads caused by crosswinds and turning, and torsional loads through wheel and axle assemblies.
Repeated over thousands of take-off and landing cycles, these forces make fatigue performance particularly important.
Forging provides an important advantage because the deformation process can establish grain flow through the component.
When the forging process and die geometry are correctly engineered, grain flow can follow important load paths rather than being interrupted in the way that can occur when a complex component is machined entirely from a large rectangular block.
This does not mean that every forged component automatically has superior fatigue performance. The advantage depends on billet quality, forging reduction, temperature control, die design, heat treatment and inspection.
For flight-critical landing gear parts, each of these variables must be controlled.
Typical Forged Landing Gear Components
Landing gear systems contain several component categories that may use forgings depending on aircraft design.
These can include main structural members, cylinders, axles, torque links, trunnions, braces, actuator-related components and other high-load structural parts.
The exact forging process depends heavily on geometry.
A long structural member may require a very different deformation sequence from a compact trunnion or cylindrical component. Large aerospace forgings may also require several intermediate forging operations rather than a single forming step.
This is where supplier engineering capability becomes important.
A forging supplier should be able to study the finished component and determine how sufficient deformation will be introduced throughout the required sections while maintaining adequate machining allowance and avoiding unnecessary material consumption.
300M Steel for Landing Gear Forgings
300M is one of the best-known ultra-high-strength steels associated with aircraft landing gear.
It is derived from the 4340 alloy family but modified to provide extremely high strength for demanding aerospace structures.
The material is attractive because landing gear designers require components capable of carrying very high loads without becoming excessively heavy.
However, achieving high strength alone is not sufficient.
A landing gear component must also maintain appropriate toughness and fatigue resistance. This makes the entire manufacturing sequence important, particularly raw-material cleanliness and heat treatment.
At ultra-high strength levels, small metallurgical defects can become significantly more consequential. Inclusions, heat-treatment deviations, surface damage or grinding burns that might be less critical in ordinary industrial machinery can become unacceptable in flight-critical applications.
For this reason, US aerospace buyers assessing 300M forging suppliers generally evaluate the manufacturer’s process-control system as closely as the forging equipment itself.
Titanium Landing Gear Forgings
Titanium alloys provide another route for aerospace structural components where weight reduction is especially important.
Ti-6Al-4V is the most widely recognised titanium alloy in aerospace manufacturing, although exact material selection is always controlled by the aircraft design and applicable specification.
Titanium offers a high strength-to-weight ratio and excellent corrosion resistance.
These characteristics can make it attractive for landing gear and related aerospace structures, particularly where reducing mass provides meaningful aircraft-level benefits.
Titanium forging, however, creates its own manufacturing challenges.
The temperature range must be carefully controlled because forging temperature influences microstructure and mechanical properties. Surface contamination at elevated temperature must also be controlled, and subsequent machining requires suitable tooling and process parameters.
A supplier experienced only in carbon or low-alloy steel forging should not automatically be considered qualified for titanium aerospace forgings.
Grain Flow Engineering in Landing Gear Components
One of the most important reasons to use forging for a landing gear component is grain-flow orientation.
Consider a component with a major change in direction or cross-section. If that shape is machined from a large block, the material’s original grain direction may cut across the final geometry.
With a properly engineered forging, material can instead be progressively displaced toward the final shape.
This allows grain flow to follow the geometry more naturally.
The result can support better fatigue performance and structural reliability, provided the forging process is correctly designed and validated.
For US aerospace procurement teams, this means supplier discussions should include more than the finished dimensions.
The buyer should understand the proposed billet size, forging stages, reduction strategy, die design and any process-validation requirements associated with the part.
Heat Treatment and Mechanical Properties
For both high-strength steels and titanium alloys, heat treatment is fundamental to final component performance.
A 300M forging may require carefully controlled thermal processing to achieve its specified strength and toughness. Titanium components likewise depend on controlled heat treatment to achieve the required microstructure and mechanical properties.
Aerospace heat treatment requires disciplined furnace control.
Temperature uniformity, instrument calibration, thermocouple placement, soak time, transfer time and cooling conditions can all affect the finished material.
Where programme requirements call for NADCAP-accredited special processing, the supplier must either possess the relevant approval or work through an approved process route accepted by the customer.
The important procurement question is therefore not simply, “Do you have a heat-treatment furnace?”
It is, “Can your heat-treatment system meet the exact aerospace specification and customer approval requirements applicable to this component?”
Non-Destructive Testing of Landing Gear Forgings
Landing gear components typically require rigorous inspection because both internal and surface discontinuities can affect fatigue life.
Ultrasonic testing may be used to examine the internal volume of a forging. Magnetic particle inspection can be applicable to ferromagnetic steel components, while fluorescent penetrant inspection is commonly used for suitable non-ferrous materials and specified aerospace applications.
Inspection acceptance criteria must be tied to the governing drawing and specification.
A general industrial UT procedure should not automatically be assumed to satisfy aerospace requirements.
Inspection personnel qualifications, equipment calibration, reference standards, surface condition and documentation all form part of the quality system.
Machining and Dimensional Control
A rough landing gear forging is only the beginning of the manufacturing process.
Finished components can contain precision bores, bearing seats, intersecting features, tight positional tolerances and carefully controlled wall sections.
Machining strategy therefore needs to account for forging variation, heat-treatment distortion and the final inspection plan.
For complex low-volume components, integrating forging and machining can reduce the number of supplier handoffs and make it easier to maintain traceability between the original forging and the final machined component.
CMM inspection becomes especially important where complex geometric relationships and tight tolerances must be demonstrated.
AS9100D, FAIR and US Aerospace Qualification
AS9100D provides the quality-management framework expected throughout much of the aerospace supply chain, but certification alone does not automatically qualify a supplier for a specific landing gear programme.
A US buyer may additionally require customer approval, special-process qualifications, approved raw-material sources, First Article Inspection, specific NDT procedures and programme-specific documentation.
AS9102 FAIR is particularly important when a new part number enters production.
The FAIR establishes objective evidence that the supplier has interpreted and verified the complete design definition, rather than merely checking a handful of headline dimensions.
Aircraft Landing Gear Forgings at Vinir Engineering
Vinir Engineering’s forge-to-finish model combines forging, heat treatment, machining and testing for high-mix, low-volume critical components.
Its capabilities across alloy steels, titanium and other engineered materials make the company relevant to aerospace sourcing programmes where component quantities may be limited but manufacturing and documentation requirements remain stringent.
For US aerospace buyers evaluating landing gear or other high-load structural forgings from India, the engagement can begin with a drawing and specification review covering material, forging route, heat treatment, inspection, machining and qualification requirements.
